.csv


class: ExportingCSV

class ExportingCSV(**kwargs)[source]

Options for exporting data to CSV or Microsoft Excel, or displaying the data in a HTML table or a JavaScript structure.

This module adds data export options to the export menu and provides JavaScript functions like Chart.getCSV(), Chart.getTable(), Chart.getDataRows(), and Chart.viewData().

Warning

The XLS converter is limited and only creates a HTML string that is passed for download, which works but creates a warning before opening. The workaround for this is to use a third party XLSX converter.

Class Inheritance
Inheritance diagram of ExportingCSV

copy(other=None, overwrite=True, **kwargs)

Copy the configuration settings from this instance to the other instance.

Parameters:
  • other (HighchartsMeta) – The target instance to which the properties of this instance should be copied. If None, will create a new instance and populate it with properties copied from self. Defaults to None.

  • overwrite (bool) – if True, properties in other that are already set will be overwritten by their counterparts in self. Defaults to True.

  • kwargs – Additional keyword arguments. Some special descendents of HighchartsMeta may have special implementations of this method which rely on additional keyword arguments.

Returns:

A mutated version of other with new property values

classmethod from_dict(as_dict: dict, allow_snake_case: bool = True)

Construct an instance of the class from a dict object.

Parameters:
  • as_dict (dict) – A dict representation of the object.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python object representation of as_dict.

Return type:

HighchartsMeta

classmethod from_js_literal(as_str_or_file, allow_snake_case: bool = True, _break_loop_on_failure: bool = False)

Return a Python object representation of a Highcharts JavaScript object literal.

Parameters:
  • as_str_or_file (str) – The JavaScript object literal, represented either as a str or as a filename which contains the JS object literal.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

  • _break_loop_on_failure (bool) – If True, will break any looping operations in the event of a failure. Otherwise, will attempt to repair the failure. Defaults to False.

Returns:

A Python object representation of the Highcharts JavaScript object literal.

Return type:

HighchartsMeta

classmethod from_json(as_json_or_file, allow_snake_case: bool = True)

Construct an instance of the class from a JSON string.

Parameters:
  • as_json_or_file – The JSON string for the object or the filename of a file that contains the JSON string.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python objcet representation of as_json.

Return type:

HighchartsMeta

get_required_modules(include_extension=False) List[str]

Return the list of URLs from which the Highcharts JavaScript modules needed to render the chart can be retrieved.

Parameters:

include_extension (bool) – if True, will return script names with the '.js' extension included. Defaults to False.

Return type:

list

to_dict() dict

Generate a dict representation of the object compatible with the Highcharts JavaScript library.

Note

The dict representation has a property structure and naming convention that is intentionally consistent with the Highcharts JavaScript library. This is not Pythonic, but it makes managing the interplay between the two languages much, much simpler.

Returns:

A dict representation of the object.

Return type:

dict

to_js_literal(filename=None, encoding='utf-8') str | None

Return the object represented as a str containing the JavaScript object literal.

Parameters:
  • filename (Path-like) – The name of a file to which the JavaScript object literal should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Return type:

str or None

to_json(filename=None, encoding='utf-8')

Generate a JSON string/byte string representation of the object compatible with the Highcharts JavaScript library.

Note

This method will either return a standard str or a bytes object depending on the JSON serialization library you are using. For example, if your environment has orjson, the result will be a bytes representation of the string.

Parameters:
  • filename (Path-like) – The name of a file to which the JSON string should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Returns:

A JSON representation of the object compatible with the Highcharts library.

Return type:

str or bytes

static trim_dict(untrimmed: dict, to_json: bool = False) dict

Remove keys from untrimmed whose values are None and convert values that have .to_dict() methods.

Parameters:
  • untrimmed (dict) – The dict whose values may still be None or Python objects.

  • to_json (bool) – If True, will remove all keys from untrimmed that are not serializable to JSON. Defaults to False.

Returns:

Trimmed dict

Return type:

dict

static trim_iterable(untrimmed, to_json=False)

Convert any EnforcedNullType values in untrimmed to 'null'.

Parameters:
  • untrimmed (iterable) – The iterable whose members may still be None or Python objects.

  • to_json (bool) – If True, will remove all members from untrimmed that are not serializable to JSON. Defaults to False.

Return type:

iterable

property annotations: CSVAnnotationOptions | None

Options for annotations in the export-data table.

Return type:

CSVAnnotationOption

property column_header_formatter: CallbackFunction | None

JavaScript formatter callback function for the column headers.

The parameters received by the callback function are:

  • item - The series or axis object

  • key - The point key, for example y or z

  • keyLength - The amount of value keys for this item, for example a range series has the keys low and high so the key length is 2.

If Exporting.use_multi_level_headers is True, the JavaScript function should by default return an object with columnTitle and topLevelColumnTitle for each key. Columns with the same topLevelColumnTitle have their titles merged into a single cell with colspan for table/Excel export.

If Exporting.use_multi_level_headers is False, or for CSV export, it should return the series name, followed by the key if there is more than one key.

For the axis, it returns the axis title or “Category” or “DateTime” by default.

To use Highcharts’ automatically-suggested header, the callback function should return False.

Return type:

CallbackFunction or None

property date_format: str | None

The date format to apply to exported dates on a datetime axis. Defaults to '%Y-%m-%d %H:%M:%S'.

Return type:

str or None

property decimal_point: EnforcedNullType | str | None

Decimal point to use for exported CSV. Defaults to the same as the browser locale, typically '.' (English) or ',' (German, French, etc).

Returns either a string value, or an EnforcedNull instance.

Return type:

str or EnforcedNullType or None

property item_delimiter: EnforcedNullType | str | None

The item delimiter in the exported data.

Use ';' for direct exporting to Excel. If EnforcedNull, defaults to a best guess based on the browser locale. If the locale decimal point is ',', defaults to ';'. Otherwise, the delimiter defaults to ','.

Returns either a string value, or an EnforcedNull instance.

Return type:

str or EnforcedNullType or None

property line_delimiter: str | None

The line delimiter in the exported data. Defaults to a new line.

Returns either a string value, or an EnforcedNull instance.

Return type:

str or None


class: CSVAnnotationOptions

class CSVAnnotationOptions(**kwargs)[source]

Options for annotations in the export-data table.

Class Inheritance

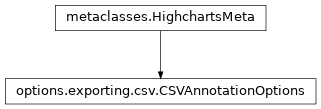

Inheritance diagram of CSVAnnotationOptions

copy(other=None, overwrite=True, **kwargs)

Copy the configuration settings from this instance to the other instance.

Parameters:
  • other (HighchartsMeta) – The target instance to which the properties of this instance should be copied. If None, will create a new instance and populate it with properties copied from self. Defaults to None.

  • overwrite (bool) – if True, properties in other that are already set will be overwritten by their counterparts in self. Defaults to True.

  • kwargs – Additional keyword arguments. Some special descendents of HighchartsMeta may have special implementations of this method which rely on additional keyword arguments.

Returns:

A mutated version of other with new property values

classmethod from_dict(as_dict: dict, allow_snake_case: bool = True)

Construct an instance of the class from a dict object.

Parameters:
  • as_dict (dict) – A dict representation of the object.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python object representation of as_dict.

Return type:

HighchartsMeta

classmethod from_js_literal(as_str_or_file, allow_snake_case: bool = True, _break_loop_on_failure: bool = False)

Return a Python object representation of a Highcharts JavaScript object literal.

Parameters:
  • as_str_or_file (str) – The JavaScript object literal, represented either as a str or as a filename which contains the JS object literal.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

  • _break_loop_on_failure (bool) – If True, will break any looping operations in the event of a failure. Otherwise, will attempt to repair the failure. Defaults to False.

Returns:

A Python object representation of the Highcharts JavaScript object literal.

Return type:

HighchartsMeta

classmethod from_json(as_json_or_file, allow_snake_case: bool = True)

Construct an instance of the class from a JSON string.

Parameters:
  • as_json_or_file – The JSON string for the object or the filename of a file that contains the JSON string.

  • allow_snake_case (bool) – If True, interprets snake_case keys as equivalent to camelCase keys. Defaults to True.

Returns:

A Python objcet representation of as_json.

Return type:

HighchartsMeta

get_required_modules(include_extension=False) List[str]

Return the list of URLs from which the Highcharts JavaScript modules needed to render the chart can be retrieved.

Parameters:

include_extension (bool) – if True, will return script names with the '.js' extension included. Defaults to False.

Return type:

list

to_dict() dict

Generate a dict representation of the object compatible with the Highcharts JavaScript library.

Note

The dict representation has a property structure and naming convention that is intentionally consistent with the Highcharts JavaScript library. This is not Pythonic, but it makes managing the interplay between the two languages much, much simpler.

Returns:

A dict representation of the object.

Return type:

dict

to_js_literal(filename=None, encoding='utf-8') str | None

Return the object represented as a str containing the JavaScript object literal.

Parameters:
  • filename (Path-like) – The name of a file to which the JavaScript object literal should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Return type:

str or None

to_json(filename=None, encoding='utf-8')

Generate a JSON string/byte string representation of the object compatible with the Highcharts JavaScript library.

Note

This method will either return a standard str or a bytes object depending on the JSON serialization library you are using. For example, if your environment has orjson, the result will be a bytes representation of the string.

Parameters:
  • filename (Path-like) – The name of a file to which the JSON string should be persisted. Defaults to None

  • encoding (str) – The character encoding to apply to the resulting object. Defaults to 'utf-8'.

Returns:

A JSON representation of the object compatible with the Highcharts library.

Return type:

str or bytes

static trim_dict(untrimmed: dict, to_json: bool = False) dict

Remove keys from untrimmed whose values are None and convert values that have .to_dict() methods.

Parameters:
  • untrimmed (dict) – The dict whose values may still be None or Python objects.

  • to_json (bool) – If True, will remove all keys from untrimmed that are not serializable to JSON. Defaults to False.

Returns:

Trimmed dict

Return type:

dict

static trim_iterable(untrimmed, to_json=False)

Convert any EnforcedNullType values in untrimmed to 'null'.

Parameters:
  • untrimmed (iterable) – The iterable whose members may still be None or Python objects.

  • to_json (bool) – If True, will remove all members from untrimmed that are not serializable to JSON. Defaults to False.

Return type:

iterable

property item_delimiter: str | None

The way to mark the separator for annotations combined in one export-data table cell. Defaults to '; '.

Return type:

str or None

property join: bool | None

If True, then when several labels are assigned to a specific point, they will be displayed in one field in the table.

Return type:

bool or None
